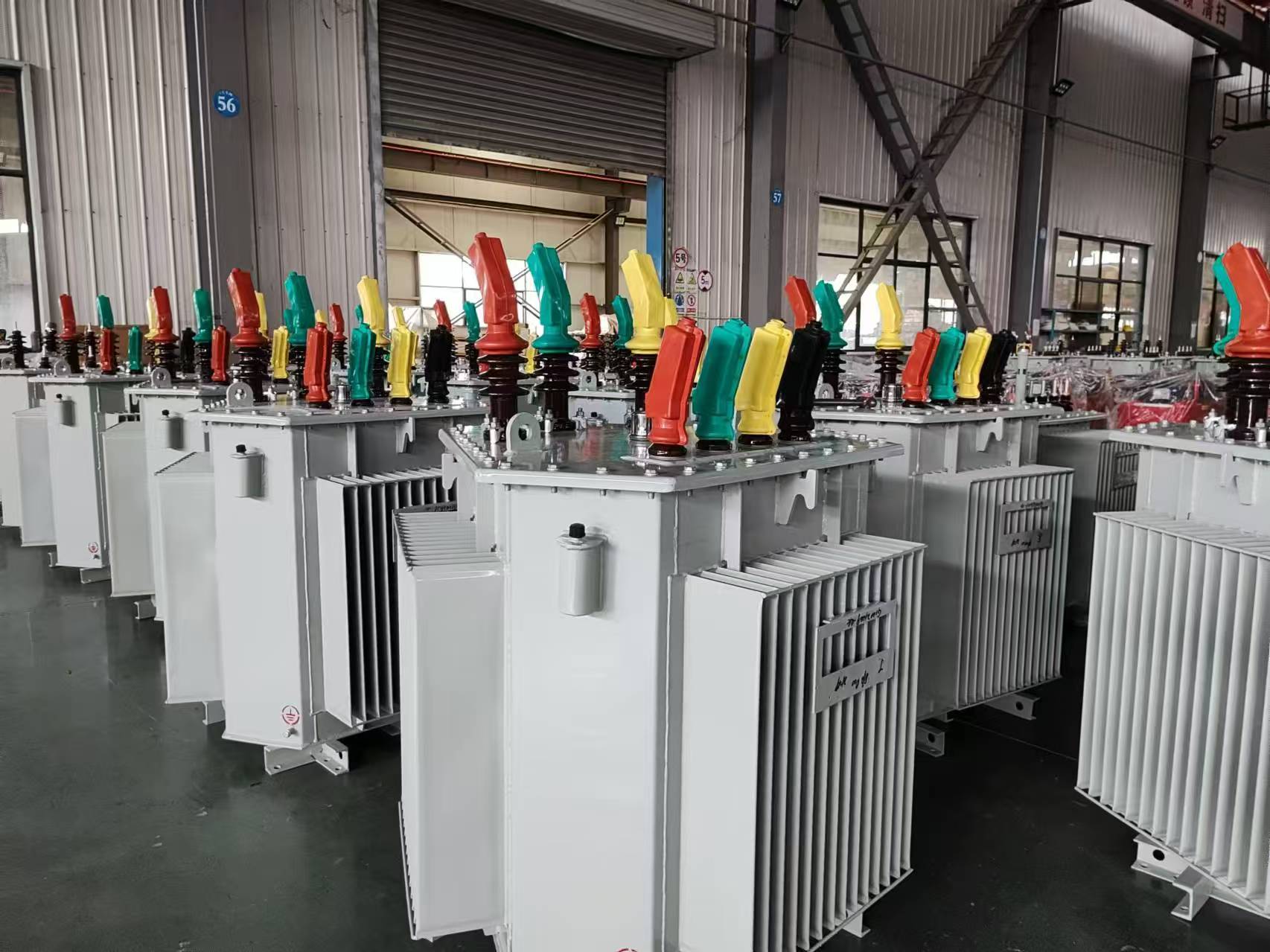

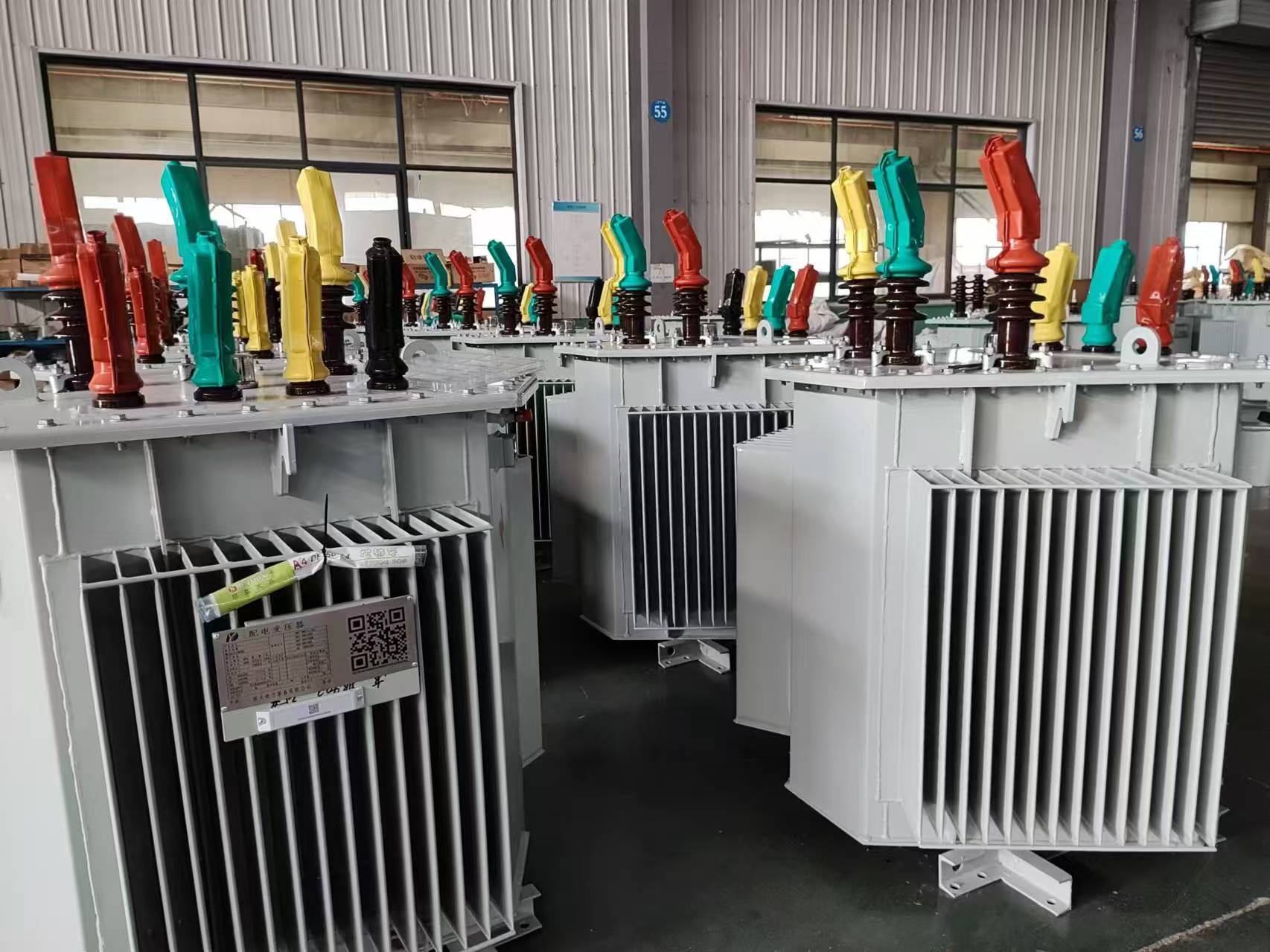

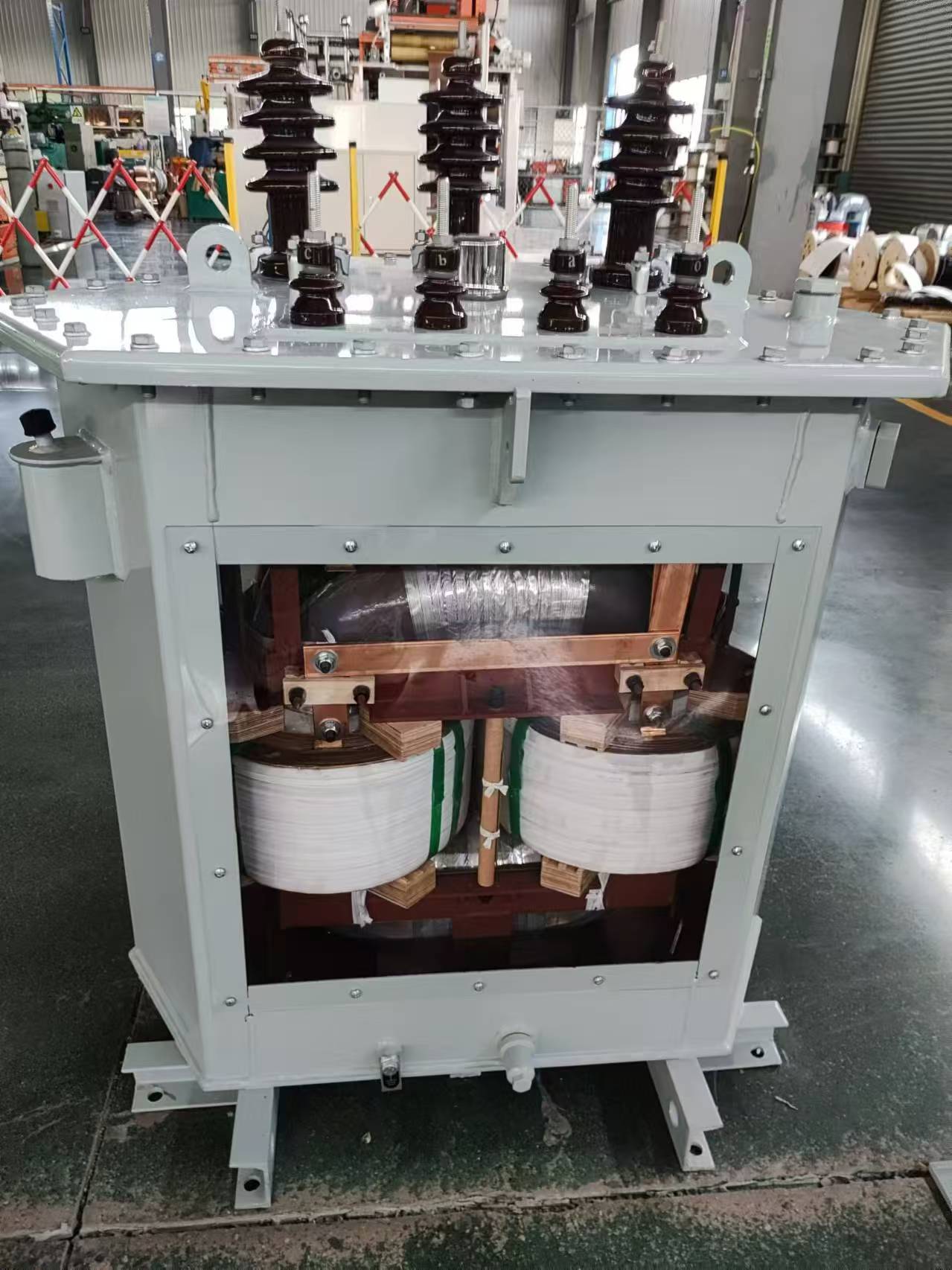

630KVA Amorphous Transformer
The SBH25-M.RL-630 amorphous alloy transformer is a high-performance, energy-efficient, environmentally friendly, and safe power equipment, widely used in industrial, commercial, civil, and special environments. This transformer uses advanced amorphous alloy materials as the core, featuring significant low loss, low noise, high safety, and compactness.
Main Features:
(1) High Efficiency and Energy Saving
Low loss design: Amorphous alloy materials have extremely low hysteresis loss and eddy current loss, significantly reducing no-load and load losses, and improving the energy efficiency ratio.
Energy-saving effect: Compared with traditional silicon steel sheet transformers, the energy efficiency ratio is significantly improved, and long-term operation can greatly save electricity.
(2) Environmental Protection and Safety
Insulation and heat dissipation: High-quality insulating oil or dry design is adopted, with good insulation performance and heat dissipation effect.
Explosion-proof device: Equipped with an explosion-proof device to ensure safe operation in abnormal conditions.
Environmental materials: Amorphous alloy materials are non-toxic and harmless, meeting environmental protection requirements.
(3) Low Noise Operation
Structural optimization: Optimizing the core and winding structure effectively reduces the noise level during operation, especially suitable for noise-sensitive environments.
(4) Strong Resistance to Short Circuits
Mechanical strength: Amorphous alloy materials have high mechanical strength, capable of withstanding large short-circuit current shocks, improving the stability and reliability of the system.
(5) Compact and Lightweight
Small size, light weight: Compared with traditional silicon steel sheet core transformers, it is smaller and lighter, making transportation and installation more convenient.
Technical Parameters (Example)
Rated capacity: 630kVA
Voltage level: 10kV/0.4kV or other configurations
Cooling method: Oil-immersed self-cooling or dry air self-cooling
Connection group: Yyn0 or Dyn11
Insulation level: Class B or higher
Protection level: IP20 or higher
No-load loss and load loss: Both are kept at a low level, and specific values can be referenced in the technical specifications provided by the manufacturer.
Application Scenarios
(1) Industrial Field
Suitable for various factories, production workshops, and other occasions that require efficient and energy-saving power supply, such as mechanical manufacturing, electronic assembly, etc.
(2) Commercial Field
Suitable for shopping malls, office buildings, hotels, and other facilities, providing reliable power support to ensure the normal progress of commercial activities.
(3) Civil Field
Suitable for residential areas, schools, hospitals, and other public buildings, ensuring daily electricity needs and providing stable power supply.
(4) Special Environments
Suitable for communication base stations, research institutions, and other places with certain power quality requirements, ensuring the stable operation of key equipment.
